Quality Car Lift Products
Commercial and Industrial Car Lift Needs
Champion Lifts
Mid-Rise Scissor Lift
| Lift Model | CHMR6K-48X |
| Capacity | 6,000 lbs |
| Overall Length | 96-1/2″ |
| Overall Width | 39-5/8″- 62″ |
| Lifting Height | 48-1/2″ |
| Min. Pad Height | 7″ |
| Lifting Height with Adapters | 54″ |
| Width Between Runways | NA |
| Width of Runways | NA |
| Lifting Speed | 40S |
| Pad Length | 24″min / 83” max |
| Ship Weight | 945 lbs |
| Power | 115V – 15 Amp – 1PH |
| |
Deluxe Storage Lift
| Lift Model | CH FP8K-DX |
| Capacity | 8,000 lbs |
| Overall Length w/Ramp | 207-5/16″ |
| Overall Width (Outside Base Plates) | 103-1/2″ |
| Overall Height | 86″ |
| Lifting Height | 74-3/4″ |
| Width Between Posts | 94-1/2″ |
| Length of Runways | 165-1/2″ |
| Width of Runways | 18-5/8″ |
| Lifting Speed | 90S |
| Maximum Clearance under Track | 70″ |
| Cable Diameter | 3/8″ |
| Base Plate Size | 10″ x 12″ |
| Lock Position | 10 |
| Ship Weight | 1,705 lbs |
| Power | 115V – 20 Amp – 1PH |
| |
Two Post Floor Plate
| Lift Model | CH9KFP |
| Capacity | 9,000 lbs. |
| Height Overall | 111-7/8″ |
| Width Overall w/ Power Unit | 134-58″ |
| Max Lift Height | 72″ |
| Width Between Columns | 110-3/8″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 101″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Floor Plate |
| Short Arm Reach – min/max | 31″-45″ |
| Long Arm Reach – min/max | Same |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,250 lbs. |
| Ship Weight | 1,270 lbs |
| Power | 220V – 20 AMP – 1 PH |
| |

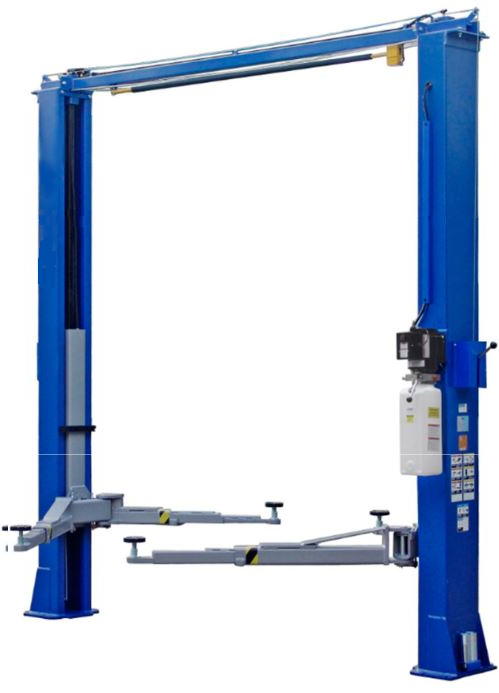

Two Post Clear Floor
CH10
- 10,000 LBS Capacity
- BI-Symmetric Lift Arms
- Low Profile Swing Arm Design
- 3 Stage Front Arms
- Adjustable Height Swivel Pads
- 2" & 4" Stackable Height Adaptors
- Single Point Lock Release
- Automatic Arm Restraints
- Direct 'Pull' Drive Cylinders
- External Hose Guards
- Rubber Door Guards
- Durable Power-Coat Finish
- New Met UL/CSA Certified Duro Power Unit
- ALI Certified
- Limited Warranty Policy - (5 yr Structural / 1 yr Parts)
| Lift Model | CH10 |
| Capacity | 10,000 lbs |
| Height Overall | 144″ |
| Width Overall w/ Power Unit | 145-1/2″ |
| Max Lift Height | 71″ |
| Width Between Columns | 116″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 104″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Bi-Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23″-45″ |
| Long Arm Reach – min/max | 41"-59" |
| Narrow Bay Setting | NA |
| Max Load Per Arm | 2,500 lbs. |
| Ceiling Height Required | 145" |
| Ship Weight | 1,705 lbs |
| Power | 220V - 20 AMP - 1 PH |
Specifications and / or color subject to change without notice or liability
| |
Forward Lifts
I10 Two-Post Lift
I10 Two-Post Lift Features
Additional Features
- 10,000 lbs capacity for raising most passenger cars, trucks, and vans
- 3-stage front arm design enables you to position doors in front of the column or behind to avoid door damage
- Adapter storage bracket kit
- Hydraulic cylinders in each column:
- Top-mounted, direct pull lifting technology, cylinder rod concealed inside the carriage
- Includes adjustable frame contact adapters
- The I10 has been third party tested by ETL and approved by ALI
| Specifications | I10N400MBL |
| Capacity | 10,000lbs |
| Max. Rise w/5″ extension | 76-1/4″ (1937mm) |
| Overall Height | 143″ (3632mm) |
| Overall Width | 131″ or optional 137″ (3327mm / 4380mm) |
| Drive through clearance | 99″ or optional 105″ (2515mm / 2667mm) |
| Overhead switch height | 137-5/8″ (3496mm) |
| Front reach (Min/Max) | 23″ / 44-1/2″ (584mm / 1130mm) |
| Rear reach (Min/Max) | 36″ / 58″ (914mm / 1473mm) |
| Min/Max Adapter Height | 3-3/4″ (95mm) no adapter extension |
| Width Inside Column | 109″ or optional 115″ (2769mm / 2921mm) |
| Adapter Heights | 3-1/2″and 5″ |
| Voltage/Amps | 208 / 230, 15 amps; 208/230, 16 amps |
| Motor | 1ph*/2HP/50Hz; 1ph*/2HP/60Hz |
| Ceiling height required | 144″ (3658mm) |
| |
F12 Two-Post Lift
F12 Two-Post Lift Features
Additional Features
- 2 Stage Arm Design
- 2-Stage Front and Rear Arms
- 72-1/2″ Rise | 77-1/2″ Rise (With 5″ Adapter Extensions)
- Cylinder Rod Concealed Inside Carriage
- Durable Powder Coat Finish
- Full Stroke
- Hydraulic Cylinders in Each Column
- Large Rubber-Padded Swivel Adapter With Extra Height Extensions (3.5″ and 5″) Are Standard
- Overhead Cable Equalization
- Single Point Lock Release
- Spring Operated Arm Restraints, Disengage at Floor Level
| Specifications | F12 |
| Capacity | 12,000 lbs. (5443kg) |
| Maximum Rise | 77-1/2″ (1968mm) |
| Adjustable Overall | 166″ (4216mm) Standard Height (F12N300) |
| Overall Width | 140″ or optional |
| Drive Through Clearance | 102-3/4″ or optional |
| Overhead Switch | 160-1/8″ (4067mm) Standard |
| Front Arm Reach (Min./Max.) | 35″/ 54″ (889 / 1372mm) |
| Rear Arm Reach (Min./Max.) | 35″/ 54″ (889 / 1372mm) |
| Min./Max. | 4-3/4″ (120) w/ no adapter extension |
| Width Inside Column | 120-7/8″ (3070mm) Adjustable |
| Voltage/Amps | 208/230, 12 amps; 208/230, 16 amps |
| Motor/Phase** | 1ph*/2HP/50Hz; 1ph*/2HP/60Hz |
| Ceiling Height Required | 168″ (4267mm) |
| |
CR14 Four-Post Lift
CR14 Four-Post Lift Features
Additional Features
- Heavy Duty Hydraulic Cylinder
- Multiple Position Latch Points in Each Structural Leg
- One Piece Formed Runway Design Incorporates Rolling Jack Channels
- Single Point Latch Release System
Optional Accessories
- 3-Phase Motor
- 7,000 lbs Capacity Rolling Bridge Jacks
- Drive Through Ramps Optional
- Internal Airline Kit
- Power Unit Cover
- Turning Radius Gauges
| Specifications | CR14N201Y | Differences | CR14N202Y |
| Capacity | 14,000 lbs. (6350kg) |
| 14,000 lbs. (6350kg) |
| Rise | 78-3/4″ (2000mm) |
| 78-3/4″ (2000mm) |
| Maximum Wheelbase | 182-1/2″ (4635mm) | <32-1/2 “> | 215″ (5460mm) |
| Overall Length | 250″ (6350mm) | <33 “> | 283″ (7188mm) |
| Overall Width | 131-3/4″ (3568mm) |
| 131-3/4″ (3568mm) |
| Width Inside Columns | 116-1/4″ (2953mm) |
| 116-1/4″ (2953mm) |
| Length Between Columns | 195-1/4″ (4946mm) | <33 “> | 228-1/4″ (4946mm) |
| Overall Height | 90-1/2″ (2299mm) |
| 90-1/2″ (2299mm) |
| Runway Width | 20″ (508mm) |
| 20″ (508mm) |
| Runway Height | 7″ (178mm) |
| 7″ (178mm) |
| Width Between Runways | 43″ (1092mm) or 46″ (1168mm) |
| 43″ (1092mm) or 46″ (1168mm) |
| Rise Time | 72 seconds |
| 72 seconds |
| Voltage* | 208/230v |
| 208/230v |
| Motor | 2HP |
| 2HP |
| Minimum Bay Size | 15′ x 25′ (4572 x 7620mm) | <36 “> | 15′ x 28′ (4572 x 8534mm) |
*Single-phase standard; 3-phase available at additional cost
Specifications subject to change without notice or liability
| |
CRO14 Four-Post Lift
CRO14 Four-Post Lift Features
The foundation of a CRO14 14,000 lbs capacity Forward four-post lift is the cable and pulley system under the runways. All hydraulics and mechanical lifting components are concealed in this area, tucked out of the way for a clean finish; however, easily accessible for inspection when needed. Forward Lift offers a durable powder-coated hammer tone paint finish on its lifts. Our four-post lifts have a multi-position lock component which allows any four-post lift to be level at any lock position. Self-chocking approach ramps and wheel chocks come standard with the CRO14.
- Heavy-Duty Hydraulic Cylinder
- Multiple-Position Latch Points in Each Structural Leg
- One Piece Formed Runway Design Incorporates Rolling Jack Channels
- Single-Point Latch Release System
Additional Features
| Specifications | CRO14N101Y | Differences | CRO14N102Y |
| Capacity | 14,000 lbs. (6350kg) |
| 14,000 lbs. (6350kg) |
| Rise | 78-3/4″ (2000mm) |
| 78-3/4″ (2000mm) |
| Maximum Wheelbase | 182-1/2″ (4635mm) | <32-1/2″> | 215″ (5461mm) |
| Overall Length | 253″ (6426mm) | <33″> | 286″ (7264mm) |
| Overall Width | 140-1/2″ (3568mm) |
| 140-1/2″ (3568mm) |
| Width Inside Columns | 116-1/4″ (2953mm) |
| 116-1/4″ (2953mm) |
| Length Between Columns | 194 3/4″ (4946mm) | <33″> | 227 3/4″ (4946mm) |
| Overall Height | 109-1/16″ (2768mm) |
| 109-1/16″ (2768mm) |
| Runway Width | 20″ (508mm) |
| 20″ (508mm) |
| Runway Height | 7″ (178mm) |
| 7″ (178mm) |
| Width Between Runways | 43″ (1092mm) |
| 43″ (1092mm) |
| Rise Time | 79 seconds |
| 79 seconds |
| Voltage* | 208/230v |
| 208/230v |
| Motor | 2HP |
| 2HP |
| Minimum Bay Size | 15′ x 26″ (4572 x 7925mm) | <24″> | 15′ x 28″ (4572 x 8534mm) |
| |
CR30 Four-Post Lift
CR30 Four-Post Lift Features
30,000 lbs capacity 4-post lift. “Think big, then lift big,” forward thinkers say!
Additional Features
- All Hydraulics and Mechanical Lifting Components Concealed Under Runway
- Internal Airline Standard
- Multi-Position Lock Components
- Self-Chocking Approach Ramps in the Rear
- Single-Point Latch Release System
| Specifications | CR30 |
| Capacity | 30,000 (13608 kg) |
| Maximum Wheelbase | 271″/307″ |
| Lifting Height | 68″ (1727mm) |
| Overall Length | 28′-8-1/8″/31′-8-1/8″ |
| Overall Width | 12′-4-13/16″ |
| Width Inside Columns | 132″ (3353mm) |
| Length Between Columns | 285″/321″ |
| Overall Height | 7′-3/4″ |
| Runway Width | 24″ (610mm) |
| Runway Height | 8-3/8″ (213mm) |
| Width Between Runways | 41″ – 48″ (1041mm – 1219mm) |
| Rise Time* | 105 seconds |
| Voltage* | 208/230v |
| Amps | 20 |
| Motor | 4HP |
| Minimum Bay Size | 16′ X 33′ |
| |
Wheel Balancers
Redline 3200
- Voltage: 110 Volt
- Max Wheel Weight: 165 lbs
- Max Tire Diameter w/ Hood: 47"
- Onboard Adaptor Storage: 7
- Max Rim Width: 20"
- Max Rim Diameter: 30"
- Max Rim Diameter for Weight Applicator: 30"
- Unbalanced to 0.00's in one SPIN.
- Full-size balancer.
- Economically priced.
- 2 dimension automatic data entry, with stick on weight applicator.
- Hidden weight spoke mode.
- Foot brake for precise weight placement.
- Quick nut standard.
- Long 40mm shaft accommodates flange.
- Plates, motorcycle wheels & wide wheel assemblies.
- 4 cones standard.
- Fold down display with large weight storage area.
- Precision stick-on weight placement with ALU data arm.
| |
GRP SMB55s
- Model Number:WB-1090
- Large easy to read screen
- Self calibrating
- Weight storage
- Pegs for accessories
- 8" long shaft with 35mm diameter
- Three centering cones
- ST, AL1, AL2, AL3, AL4 balancing methods
- Hood, speed nut, hammer and caliper standard
- Also available with automatic data entry (order model 1120)
Tire Machines
Redline 2450 Tire Changer
Redline 2450 Tire Changer
Redline 2450 Extended Range Swing Arm Tire Changer
- Space saving air blast tank in tower.
- 50" Tire capacity changes a wide range of tires and wheels.
- 24" Turntable accommodates most passengers.
- Cars and light/medium trucks.
- Optional mounting helper with following arm easily changes low-profile and run-flat tires.
- Shown with optional mounting helper.
- Inside Clamping: 15-28"
- Outside Clamping: 13-24"
- Rim/Tire Width: 12"
- Rim Width: 12"
- Tire Diameter: 50"
- Bead Breaker Capacity: 15"
- Air Pressure (psi): 110-150
- HP Motor: 1.6
- Electric Req: 120V 20A
- Weight: 545 lbs
- Width: 35"
- Depth: 45"
- Height: 78"
| |
Redline 2460HP
Redline 2460 Pneumatic Tilt Tower with 24" Turntable
- Changing tires is a one-man operation every time.
- Ridged towers safeguards against wheel damage.
- Mounting helper with 2 points of depression changes low-profile tires and run flat tires and light & medium trucks up to 19.5" tires simply and safely.
- Pneumatic tilt tower increases speed and reduces tech fatigue.
- Inside Clamping: 13-27"
- Outside Clamping: 10-24"
- Rim/Tire Width: 15"
- Rim Width: 15"
- Tire Diameter: 40"
- Bead Breaker Capacity: 18"
- Air Pressure (psi): 110-170
- HP Motor: 1.6
- Electric Req: 120V 20A
- Weight: 775 lbs.
- Width: 30"
- Depth: 37"
- Height: 72"
| |
TC-428
428 TRF Manual Tilt
- Manual tilt tower with 28" turntable.
- Rigid tower safeguards against wheel damage.
- Engineered for high volume tire shops.
- Manual tilt tower reduces operator errors.
- Designed for the "Tuff" tires.
- Dual adjustable bead breaker arm.
- Inside Clamping: 12-30"
- Outside Clamping: 10-28"
- Rim/Tire Width: 15"
- Rim Width: 15"
- Tire Diameter: 45"
- Bead Breaker Capacity: 18"
- Air Pressure (psi): 110-170
- Electric Req: 120V 20A
- Weight: 775 lbs
- Width: 30"
- Depth: 37"
- Height: 72"
| |
TC528
Car Alignment
RAVAmerica TestDrive 2.0 WI-FI Alignment System
2 Post Lift Wheel Aligner
All These Features And More
- Use your 2 post lift without alignment stands
- Complete 4-wheel alignment system
- Toe, caster, camber can be adjusted in the air
- ADAS compatible with leading ADAS providers such as Autel and Texa
- Caster measured with or without turning plates
- Alignment reports paper or paperless
- Teq-Link app lets you export printouts and import workflow reports
| |
Ravaglioli 8 LINER CCD Alignment Machines
Does Every Important Thing The Big Tower Machines Do… And More!All These
- Non-Runout Technology….NO PUSHING VEHICLE.
- Complete and total 4 wheel alignments
- Accuracy so tight that we print a guarantee
- 25 ft wheelbase capacity
- ADAS compatible
- Able to export reports and data offsite
- 24” rims or greater
- Able to calibrate yourself with fixture
- Lifetime Support
Conventional Cabinet Model
For Use in and Around Your Workshop
Key Features
No roll back required!
Changes bays on the fly
No roll back trailer alignment
Self calibration package
Smart tablet remote control/viewer
Remote control on each measuring receptor
Set of 4 NonRunout HD FastClamps
Cruise thru the alignment using color coded keys
Two head steer axle measurements possibility
PC managed by windows pro
24” monitor, printer, remote, mouse, steering and brake locks
Teq-link app- export the printouts/receive workflow reports.
TD8060NA
Express Truck Aligner
Premium Package
Extremely Portable
Key Features
NO ROLL BACK REQUIRED!
Changes Bays on the Fly
No Roll Back Trailer Alignment
Self Calibration Package
Smart Tablet Remote Control/Viewer
Remote Control on Each Measuring Receptor
Choice of two different wheel clamp types
Cruise Thru the Alignment Using Color Coded Keys
Two Head Steer Axle Measurements Possibility
PC managed by Windows Pro
Teq-Link App- Export the printouts/receive workflow reports.
TD6000CNA
“Spirit” Truck Aligner
Premium Package
RAV TD8060NA COMBO
All-in-One Heavy Duty
and Automotive System
Key Features
All Premium Features Included with Standard Express Model Plus:
Set of 2 Passenger/Light Truck Measuring Receptors
Set of 4 No Comp 4 Point Automotive Wheel Clamps
Premium Light Duty Alignment Software
Passenger Car/Light Truck Vehicle Database
TD8060NAC
Express Truck/Car Aligner
Premium Package
RAVTD6000 Sprint Mobile 2
Platinum Level
On-Site Mobile System
Mobile 2 Portable Wheel Aligner Key Features
Two industrial quality custom cases with casters.
NO ROLL BACK REQUIRED!
Tablet PC gives the system extreme portability.
Transport safely to onsite location or use in your shop.
No Roll Back Trailer Alignment
Self Calibration Package
Remote Control on Each Measuring Receptor
Set of 4 NonRunout HD FastClamps
Two Head Steer Axle Mode
Teq-Link App- Export the printouts/receive workflow reports.
Handles trucks, trailers, RVs and buses, multi-axles and more.
TD6000
“Sprint” Mobile 2 Truck Aligner
Premium Package
RAV TD6000 Sprint Mobile 1
Gold Level
On-Site Mobile System
Mobile 1 Key Features
One industrial quality custom case on casters.
NO ROLL BACK REQUIRED!
Tablet PC gives the system extreme portability.
Transport safely to onsite location or use in your shop.
No Roll Back Trailer Alignment.
Self Calibration Package.
Remote Control on Each Measuring Receptor.
New Touchless wheel clamps reference the tire.
Handles trucks, trailers, RVs and buses, multi-axles and more.
Two Head Steer Axle Mode.
Teq-Link App- Export the printouts/receive workflow reports.
Check Out Our Automotive Equipment
Target Automotive Equipment
(800) 468-7550 / (631) 361-6833
